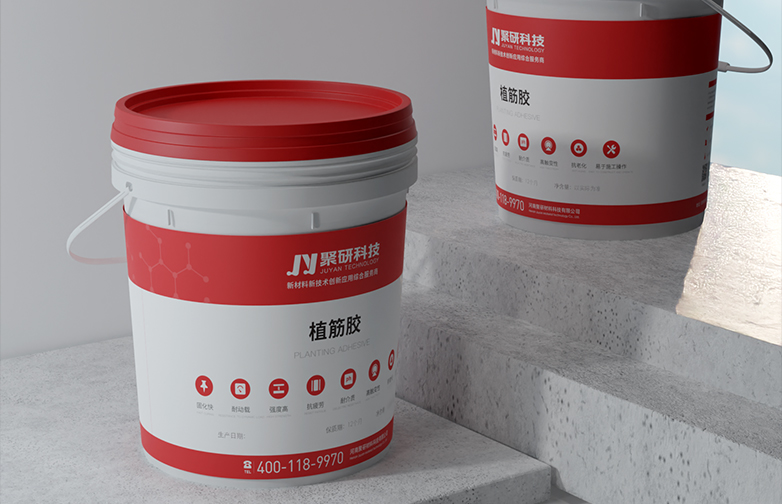

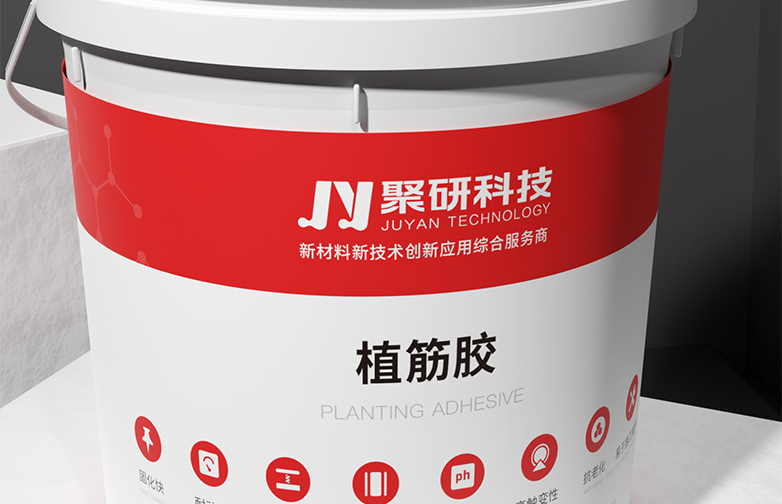

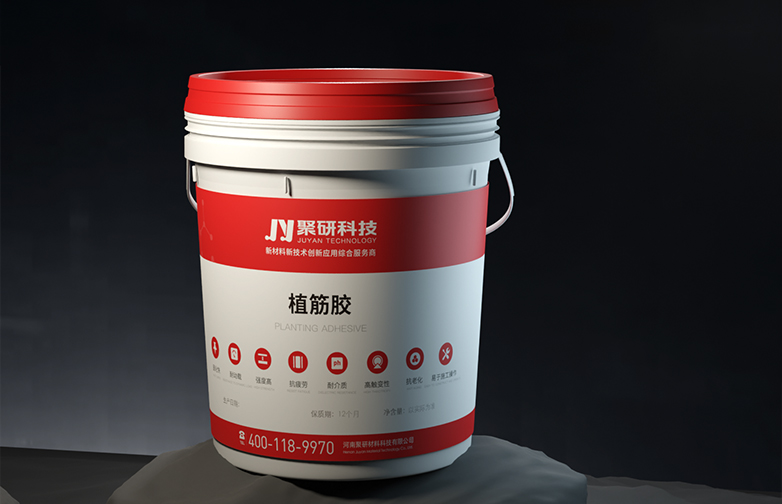

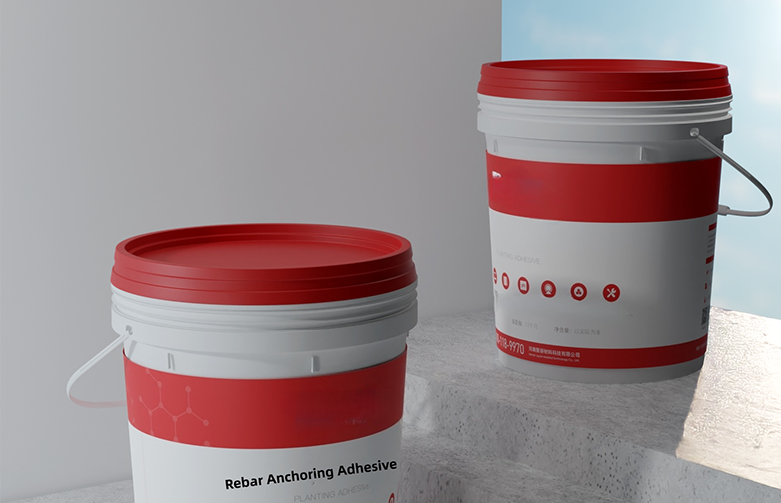

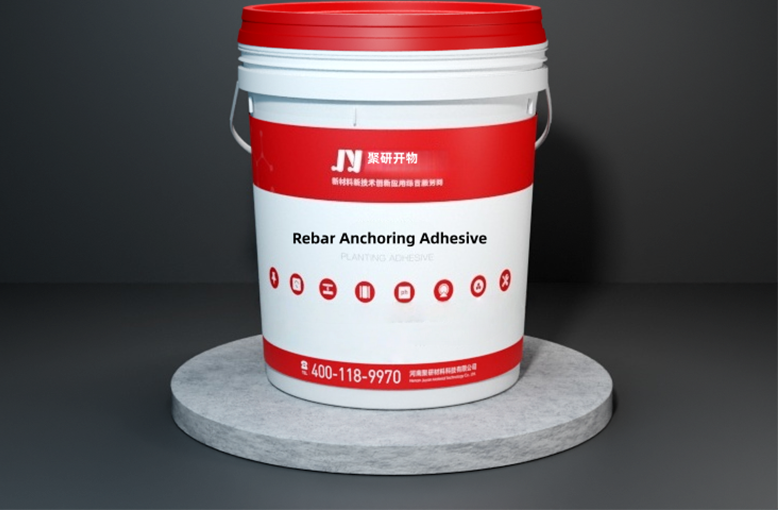

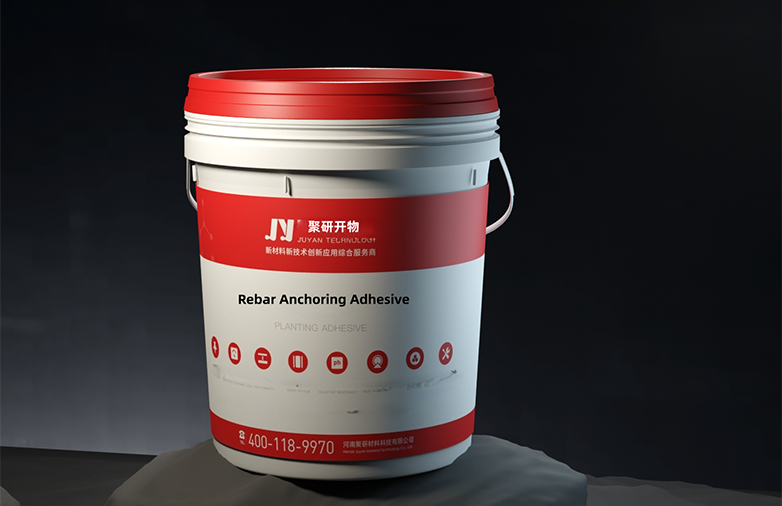

This product is a two-component modified epoxy structural adhesive. Component A is a dark gray paste, and Component B is a dark brown paste. For use, simply mix Components A and B thoroughly in a ratio of 2:1.
Rapid Curing
Resistant to Dynamic Loads
High Strength
Fatigue Resistance
Chemical Resistance
|
Test Item |
Acceptance Criteria |
Remarks |
|
|
Colloid Properties |
Splitting Tensile Strength(MPa) |
≥8.5 |
No brittle failure |
|
Flexural Strength(MPa) |
≥50 |
||
|
Compressive Strength(MPa) |
≥60 |
||
|
Bonding Capacity |
Steel-to-Steel Tensile Shear Strength(MPa) |
≥16 |
|
|
C30，L=150,Ø25 Constrained Pull-out (MPa) |
≥11 |
|
|
|
C60,L=125,Ø25 Constrained Pull-out (MPa) |
≥17 |
|
|
|
Steel-to-Steel T-Peel Impact Length (mm) |
≤25 |
|
|
|
Non-volatile Content (%) |
>99 |
|
|
|
Note: Test conditions shall comply with relevant standard requirements. |
|||
|
Long-term Performance Indicators |
|||
|
Test Item |
Acceptance Criteria |
Remarks |
|
|
Environmental Resistance Performance |
Resistance to Humid-Heat Aging |
≤10% |
Reduction in Shear Strength |
|
Resistance to Thermal Aging |
≤5% |
Reduction in Shear Strength |
|
|
Resistance to Freeze-Thaw Cycles |
≤5% |
Reduction in Shear Strength |
|
|
Stress Resistance Performance |
Resistance to prolonged stress |
Test specimen remains undamaged. |
Furthermore, the creep value is less than 0.4 mm. |
|
Steel-to-Steel Bond Tensile Strength (MPa) |
Test specimen remains undamaged. |
Specified-Frequency Fatigue Under Loading |
|
|
Note: Inspection conditions shall be in accordance with the requirements of relevant specifications. |
|||
Structural reinforcement via anchoring in concrete substrates;Structural reinforcement of industrial and civil buildings and structures;Structural reinforcement of highways and bridges;Reinforcement and strengthening of other concrete components subject to dynamic and static loads;Applications in low-temperature, high-temperature, wet-surface, and underwater environments.
